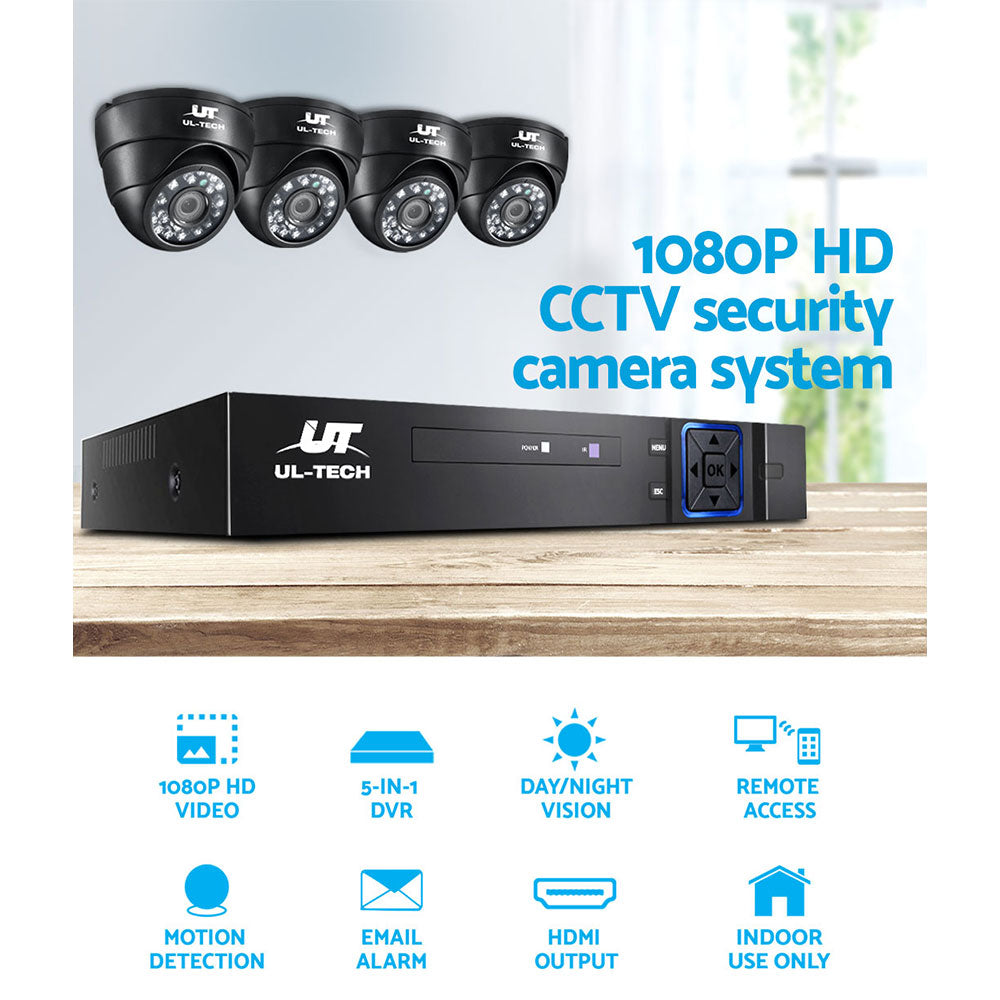

UL-tech CCTV Security System 8CH DVR 4 Cameras 1TB Hard Drive

UL-tech CCTV Security System 8CH DVR 4 Cameras 1TB Hard Drive

Motion detection of up to 192 areas. Infrared night vision within a 20m radius. A camera resolution of 1080P HD for live and recorded video that is supremely better than the usual 720P used in most DIY home security systems. The UL-Tech CCTV 1080P 8-channel CCTV Security Camera is simply one of the best home surveillance systems that you can get in the market today.

Utilizing the latest security monitoring technology, our UL-Tech CCTV system is featured with record, playback, search modes and many more. The high resolution makes it easy to identify facial features, license plates and clothing patterns for total convenience in the event of any home invasion or break-in. With its huge hard disk storage, the System enables you to review your recordings even from quite a while back. You’ll be glad to know too that your data will be also be protected from any power outage.

The CCTV System supports P2P technology for effortless link to the internet, and the 5-in-1 DVR has video outputs via VGA and HDMI. Better still, you can access the System remotely through your smartphone or mobile device to view, capture and record with the free app and an instant email will be sent to your account if any unauthorized motion is detected. You can also customize the motion detection so that the camera will only be activated when motion is detected.

So come your next vacation or anytime that you’re not home, it’s good to know that the UL-Tech 1080P CCTV Security Camera is your all-seeing eye on your property every single moment of the day and night. Install one today for total peace of mind.

Note: Camera angle only can be adjusted by hand manually

Note: This Camera is not for outdoor use

Features

• 1080P HD
• 8 Channel 1080N 5-in-1 DVR
• Supports AHD, TVI, CVI, CVBS and IP camera
• Support P2P technology
• High resolution cameras with Built-in IR-cut
• Internal hard disk for video storage (1TB Hard disk included)
• Remote access
• View on phone or computer by logging in free app
• Customizable motion detection
• Instant E-mail alarm
• HDMI and VGA outputs
• Indoor use
• Support USB backup and storage
• Data protection when power outage
• Support 8 channel simultaneous live viewing via smart phone
• Support Capture and Record in your smart phone
• Support Cloud System for Remote Access/Support HDMI Output
• Easy to install
• Bonus 1TB hard drive and USB mouse

Specifications

• Video:
• Codec: H.264
• Monitor quality: VGA, HDMI:HD
• Preview ability: 8*1080N
• Encode ability: 8*1080N@12fps
• Decode ability: 8*1080N@12fps
• Multi-mode input: analog: 8*1080N
• Hybrid: 4*1080N (analog) + 4*960P (network)
• Network only: 16*1080P; 16*960P; 9*1080P
• Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
• Record and playback:
• Record mode: Manual > Alarm > Motion detection > Timing
• Local playback: 8ch (local input mode)
• Seatrch mode: Search by time, calender, event, channel

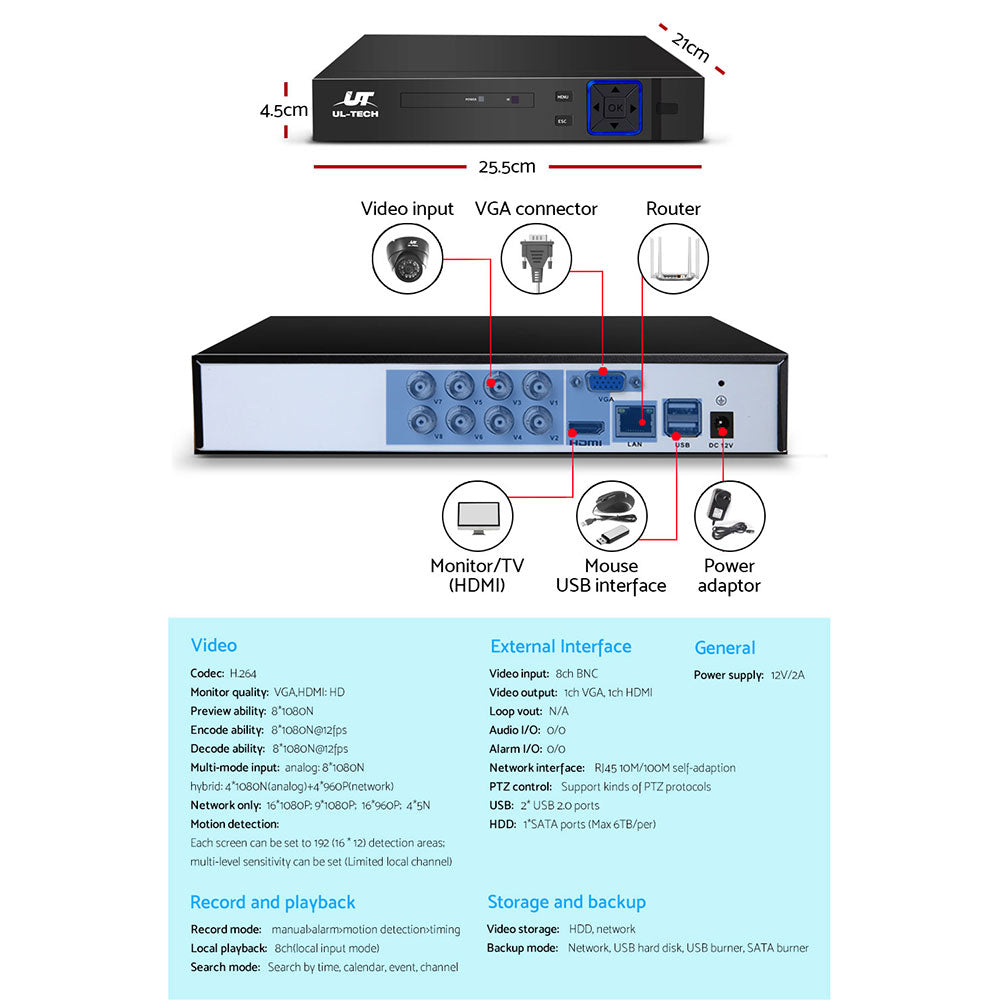

• External inferface:
• Video input: 8ch BNC
• Video output: 1ch VHA, 1ch HDMI
• Loop vout: N/A
• Audio I/O: 0/0
• Alarm I/O: 0/0
• Network interface: RJ45 10M/100M self-adaptation
• PTZ control: 1*RS485, support kinds of PTZ protocols
• USB: 2* USB 2.0 ports
• HDD: 1*SATA ports (Max 6TB/per)
• Storage and backup
• Video storage: HDD, network
• Backup mode: Network, USB hard disk, USB burner, SATA burner
• General:
• Power supply: 12V/2A

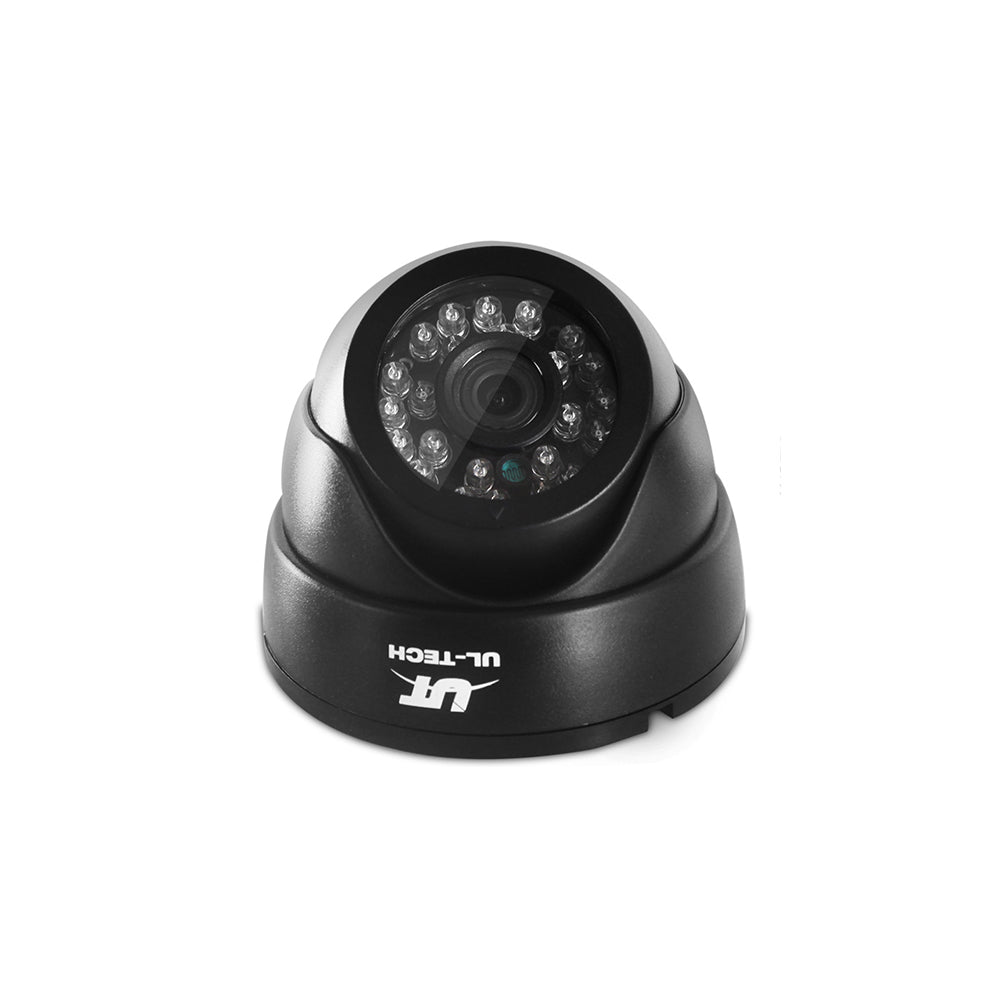

• Camera:
• Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532)
• Video resolution: 1080P (1920*1080)
• Signal system: PAL/NTSC
• Minimum illumination: Olux (When IR is on)
• Video ouput: 1.0vp-p 75
• Lens: 3.6mm
• Number of infrared LEDS: 24
• Day and night function: Built-in IR-CUT
• Night vision distance: Up to 66ft/ 20m
• Noise-signal ratio: 41db
• Operating power: DC12V 10%
• Consumption: <5W

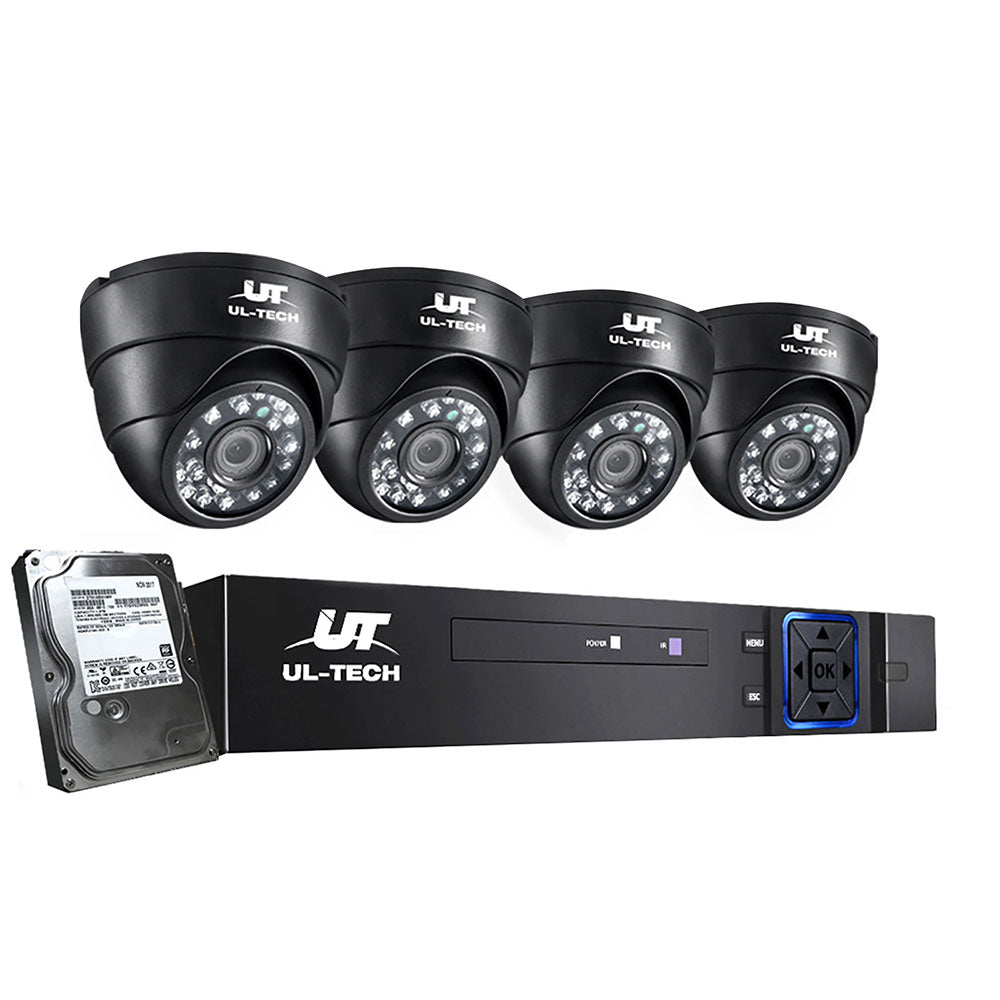

Package Contents

• 4 x UL-tech AHD Camera
• 1 x 1080 8CH DVR

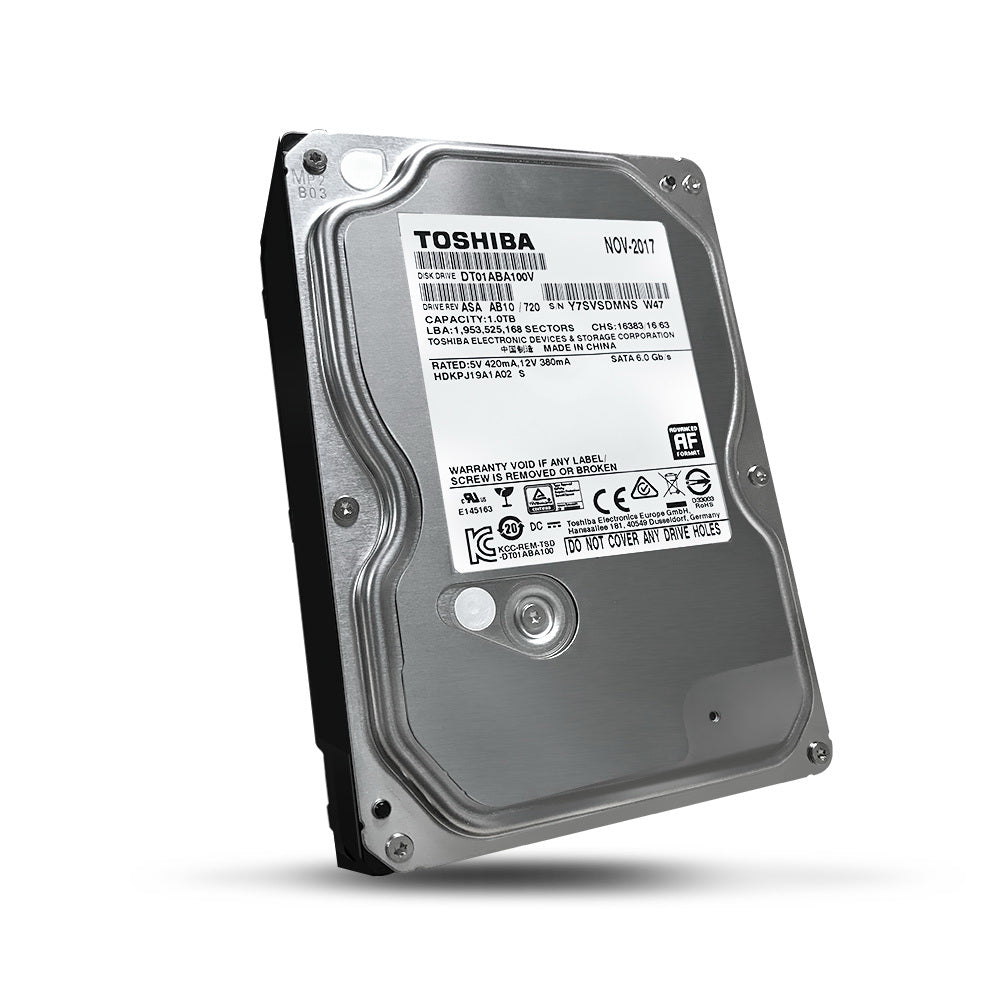

• 1 x 1TB Hard Drive
• 4 x 18.3m (60ft) 2-in-1 BNC Power Cable
• 2 x 1-4 Splitter Cable
• 1 x 12V/ 2A Power
• 1 x USB Mouse
• 1 x User Manual
