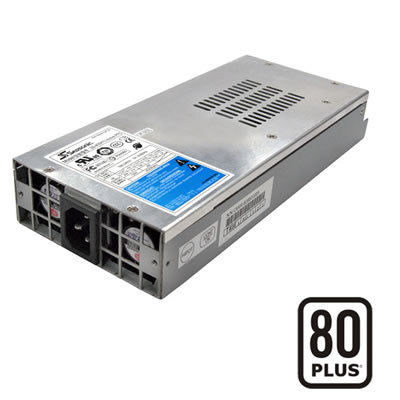

SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)

FREE DELIVERY AUSTRALIA-WIDE

See the features, specifications, package contents and warranty details below.

Specifications

• Forward converter circuit
• High efficiency and reliability for industrial level
• Easy swap connector design
• High reliability ball bearing fan
• Low ripple noise
• Smart Silent Fan Control (S2FC)
• Zero minimum load on 3.3V rail
• Short circuit protection on all outputs
• Over voltage protection
• Over power protection
• 100% hi-pot test
• 100% burn in, high temperature cycled on/off
• PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards
• Dimension: L235 x W100 x H40mm (9.3 x 3.9 x 1.6 )
• Fan type: 38 x 38mm
• Electrical Specifications:
• Input frequency: 50 / 60 Hz
• Inrush current, cold start: 100A max.
• Efficiency, 220-240VAC, full load: 83% typical
• Efficiency, 100-120VAC, full load: 80% typical
• Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
• Dielectric withstand, input to output: 1800VAC, 1sec.
• Line regulation: +/-1% typical
• Load regulation: +/-5% typical
• Cross regulation: +/-5% typical
• Ripple / noise: 1%
• MTBF, full load: >100K hours (Excluding the DC fan)
• Power Factor Correction: Active PFC 99% typical
• Safety: CUL, TUV, CB, CCC, BSMI
• EMC: CE, FCC, C-tick

Package Contents

• 1x SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)

Warranty: This product comes with 1 year warranty.
