Infrared Photocell Swing Sliding Gate Door Sensor Open Security Beam

Infrared Photocell Swing Sliding Gate Door Sensor Open Security Beam

Swing/ Sliding Gate | Infrared Photocell Sensor | Up to 20M

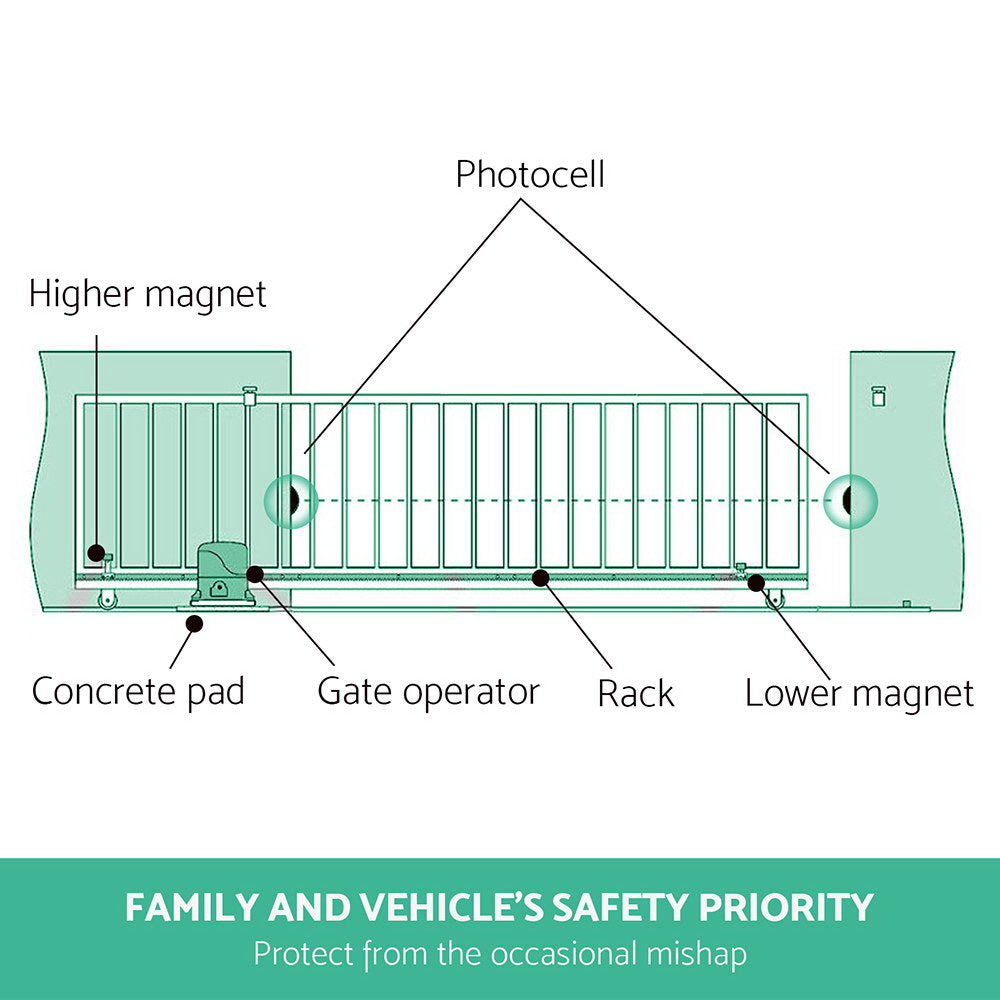

Exclusive for automated gate hardware, these infrared sensor are the ones to go for keeping your automated gate safe. Have the peace of mind knowing your family and vehicle will be protected from the occasional mishap that can happen sometimes. By placing these sensors between your automatic gate, you can ensure that your automatic gate will not be closing accidentally on a vehicle or more important, a person. KIND TIPS: Lockmaster products may come under a different brand name "UL Tech" but this is still the same product.

Features

• Hard frosted photocell
• Design for any rough weather
• Infrared technology
• Detection range up to 20M
• Automatic beam for detection
• 12 months warranty

Specifications

• Technology: Infrared (Photocell)
• Receiver range: ≤20m. Range can be reduced to 30% in bad weather conditions.
• Frequency: 1.92Khz
• Power supply: 12-24 DC/AC
• Wave length: 940mm
• Input: RX 15mA-TX 30mA, Angle: ＜± 10°
• Working temperature: -20℃ - ＋70℃
• Relay output: 1A max 30V
• Product weight: 0.2kg

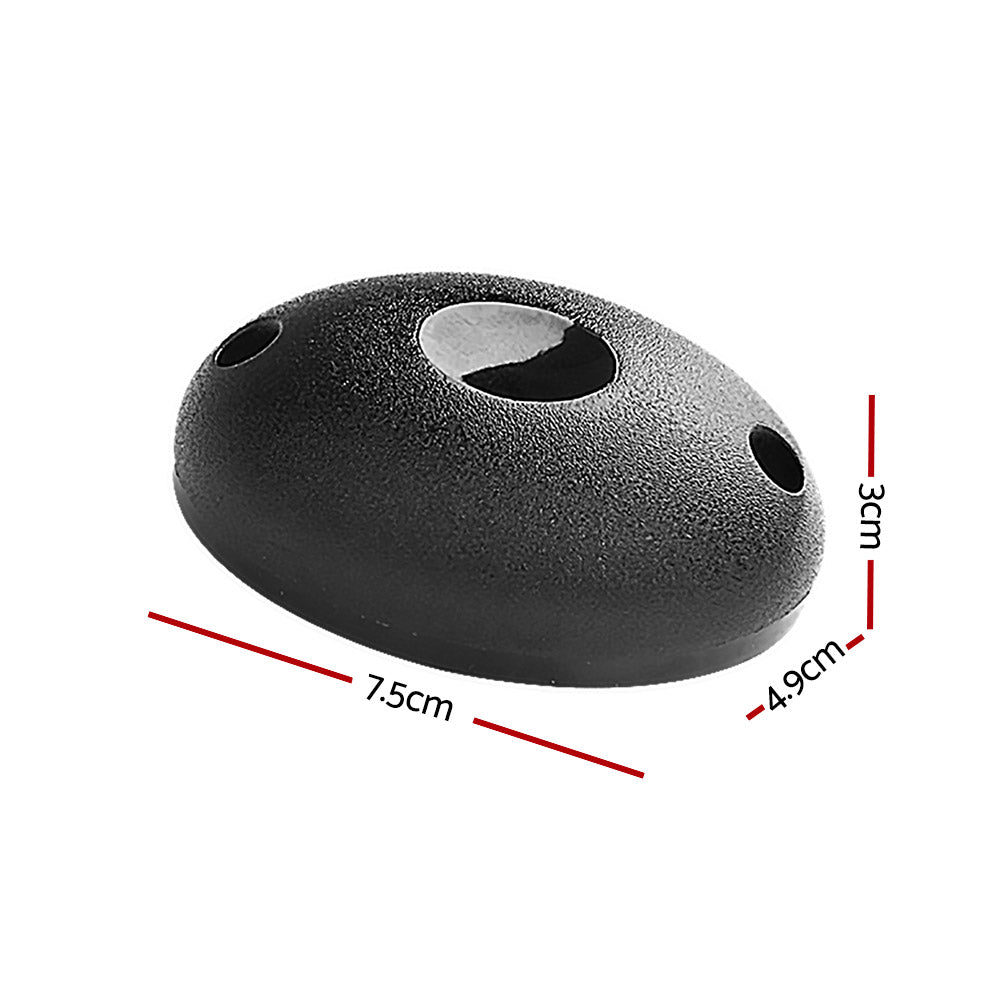

• Product dimension: 7.5 x 4.9 x 3cm
• Assembly Required: Yes
• Please note: This item comes in 1 package

Package Contents

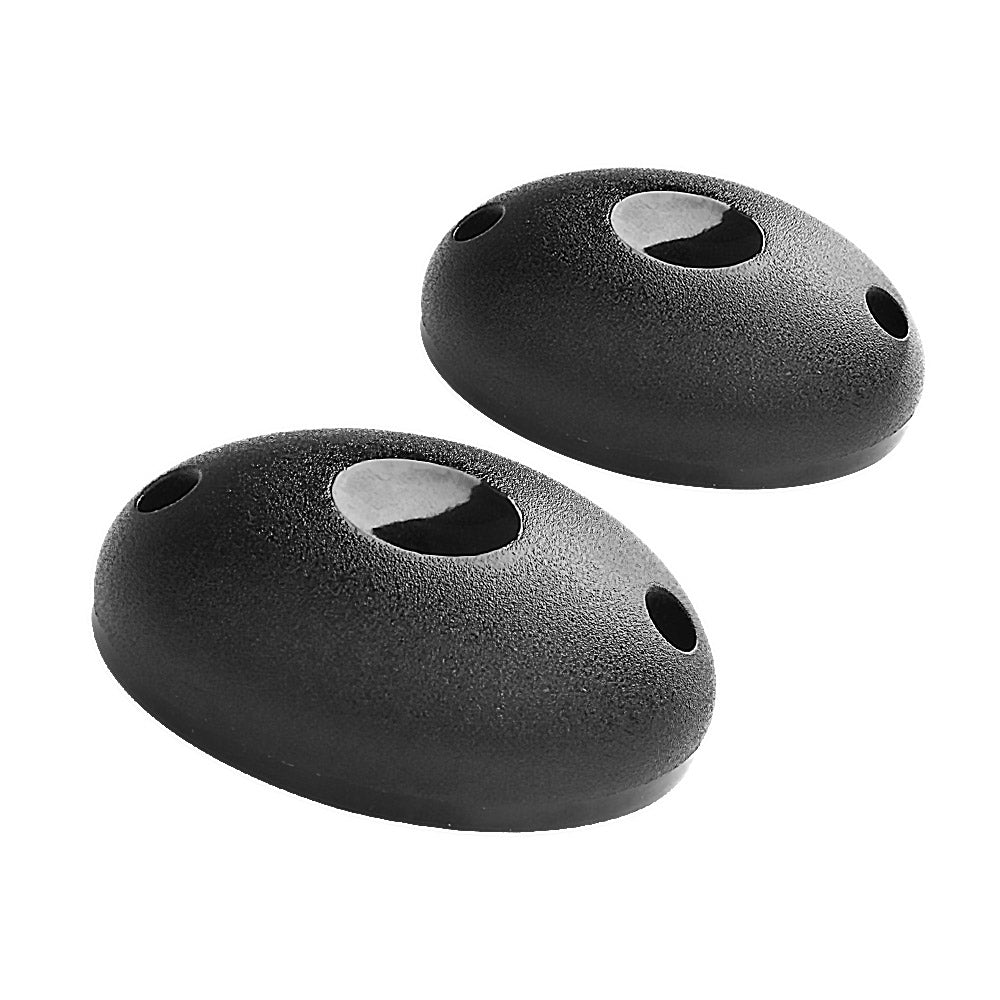

• (1) Infrared photocell x2
• (2) User Manual x1

Warranty: 1 year
