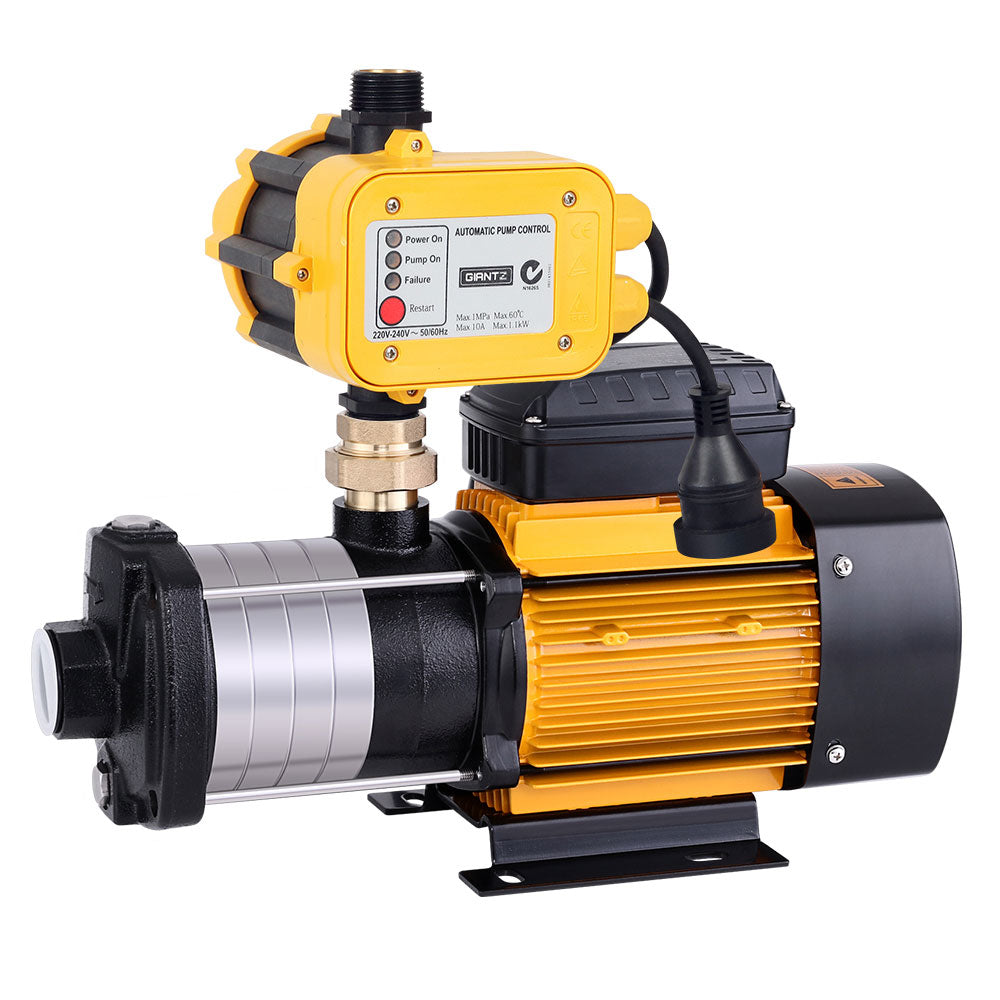

Giantz Garden Water Pump High Pressure 2000W Max 5 Stage Tank Irrigation

Giantz Garden Water Pump High Pressure 2000W Max 5 Stage Tank Irrigation

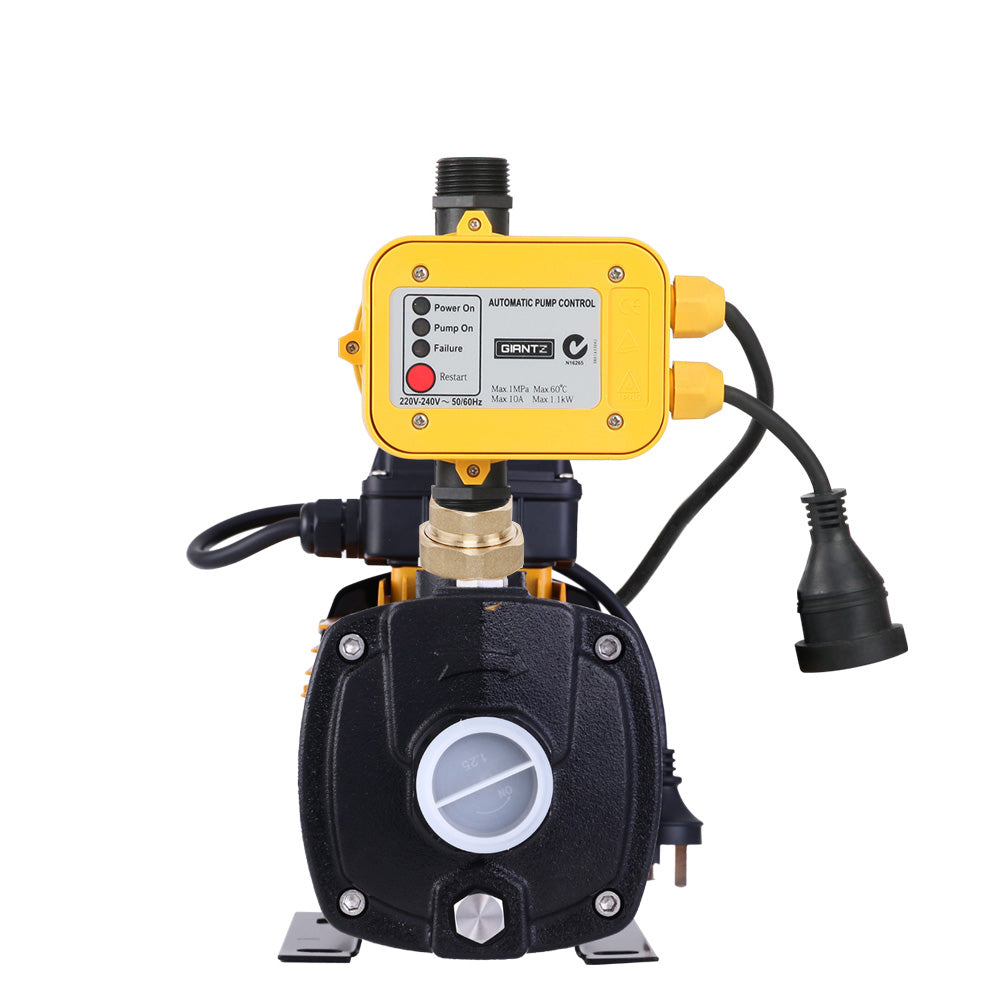

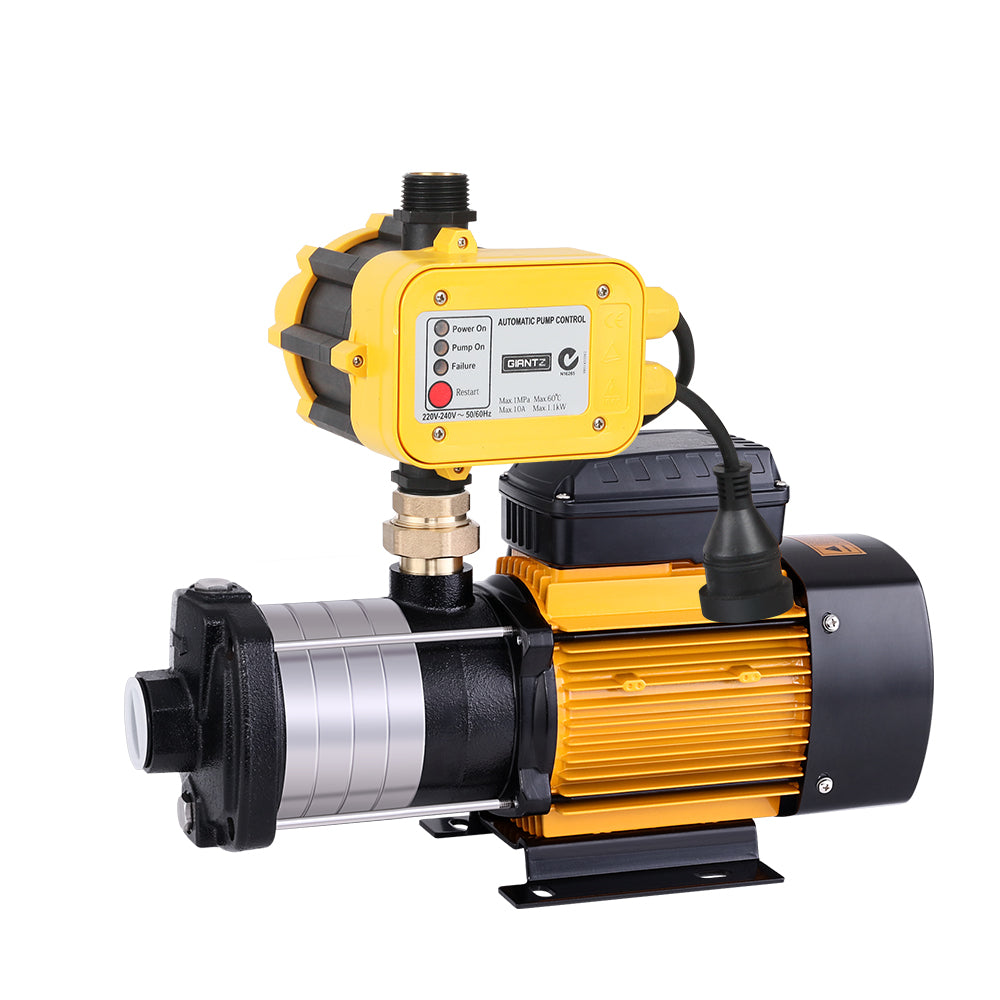

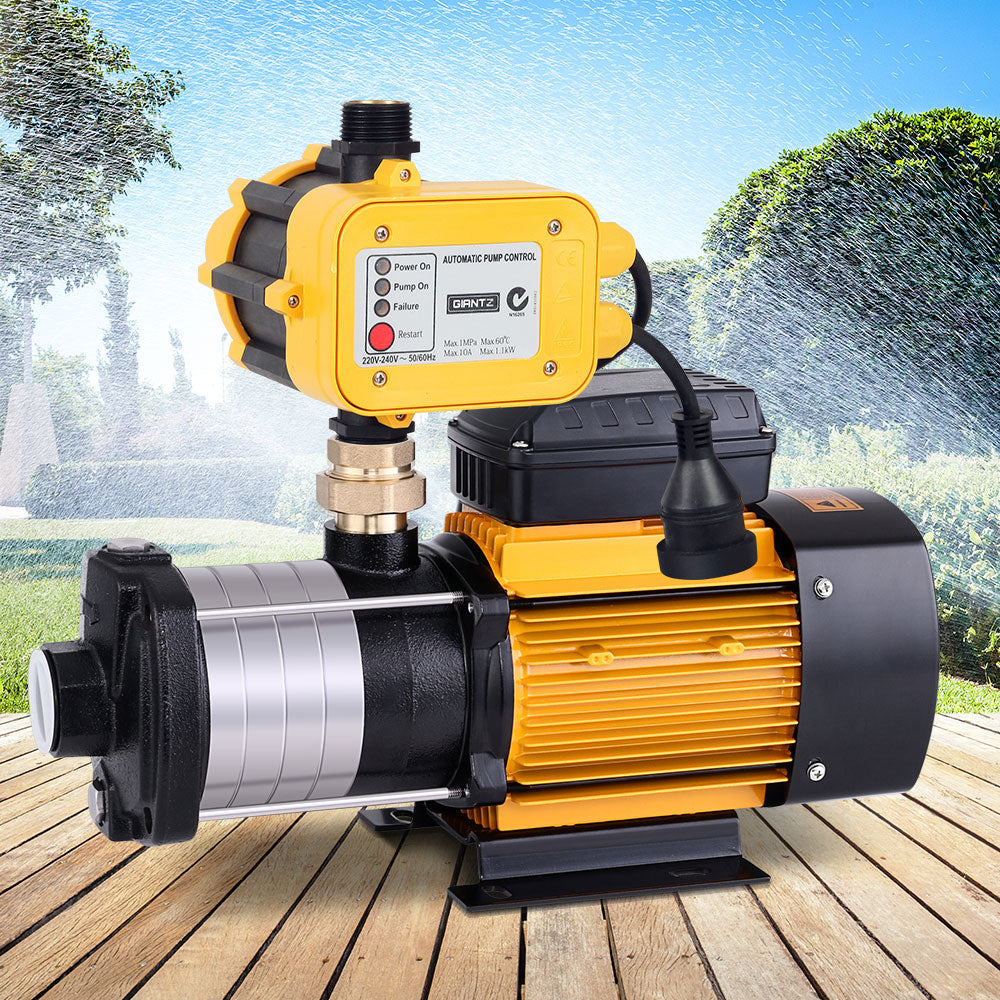

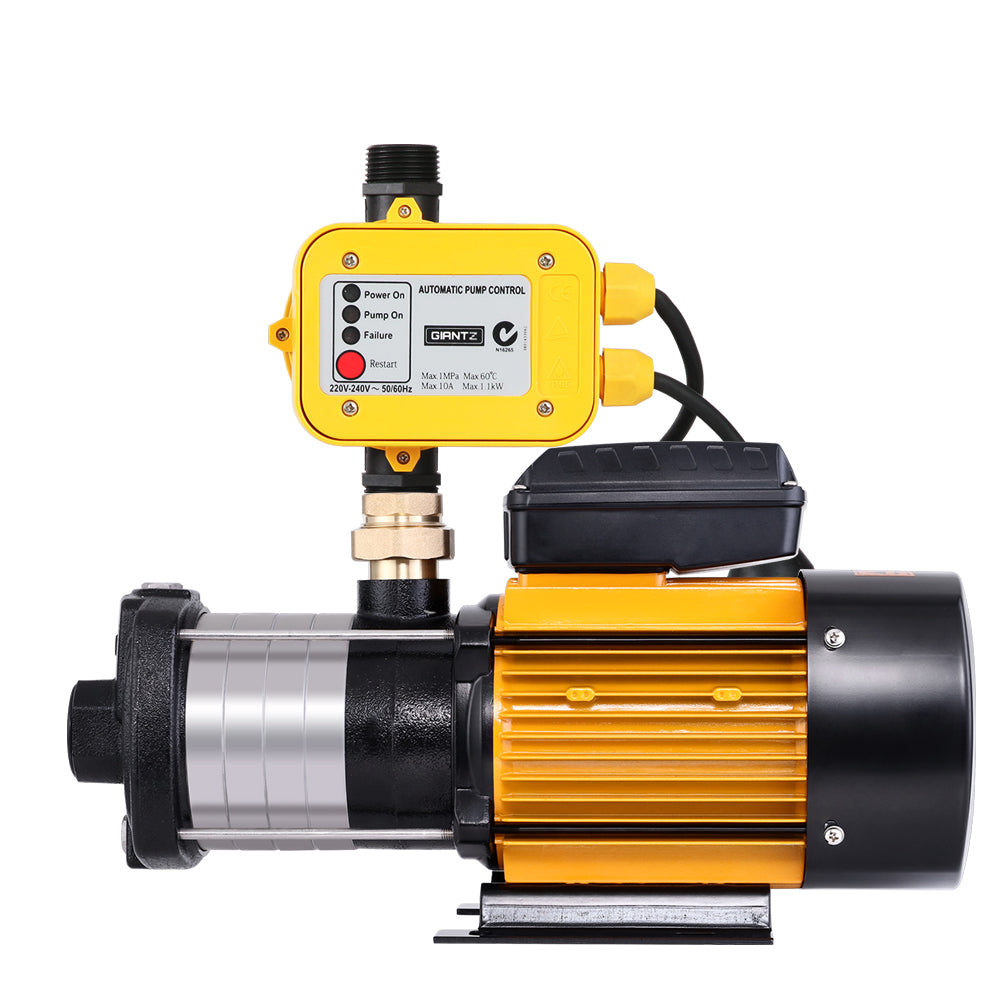

When low water pressure gets you down, power it up with our Giantz 5-stage Water Pump. It is the perfect solution where constant on-demand water pressure is needed at the open and close of any tap. You will find our water pump particularly useful for homes, household gardens, farms, or any situation where pressurised water is consistently required. The water pump features an IP-rated motor, full stainless steel pump body, cast iron ends, 1.25'' inlet and 1'' outlet ports, corrosion-resistant brass connectors, efficient cooling system and not least, built-in thermal protection. Pumping out at a rate of Max. 100L/min with a 50m head, the water pump can send water up to two stories high effortlessly. You can also accurately control the pressure to your precise requirements with the fully automatic controller and monitor it at a glance of the pressure gauge. Power to the pump is as simple as plugging it straight into any Australian standard socket. Whether you are using the pump as a permanent installation or on an ad hoc basis, you can be assured of dependable and reliable water supply in more ways than one.

I. IMPORTANT WARNING - PROHIBITED USES:
This pump is NOT designed for heavy-duty industrial, commercial, or hydraulic applications. STRICTLY PROHIBITED for use with elevator systems, industrial machinery, or as a power unit for any equipment beyond its capacity. Misuse will void the warranty and may cause product failure.
II. Operating Scope & Limitations
Home garden watering and irrigation
Transferring water from rainwater tanks or wells
Boosting water pressure in domestic pipelines
Circulating water in ponds or small fountains
Absolutely not suitable for powering hydraulic elevator systems, heavy machinery, or in any continuous high-load operation.
Ensure the electrical supply matches the pump's requirement.

Features

• Powerful self-priming multi-stage pump
• Garden irrigation, farm irrigation and home water supply
• 100% duty cycle - designed for continuous operation
• Rust-resistant stainless steel pump body with cast iron ends

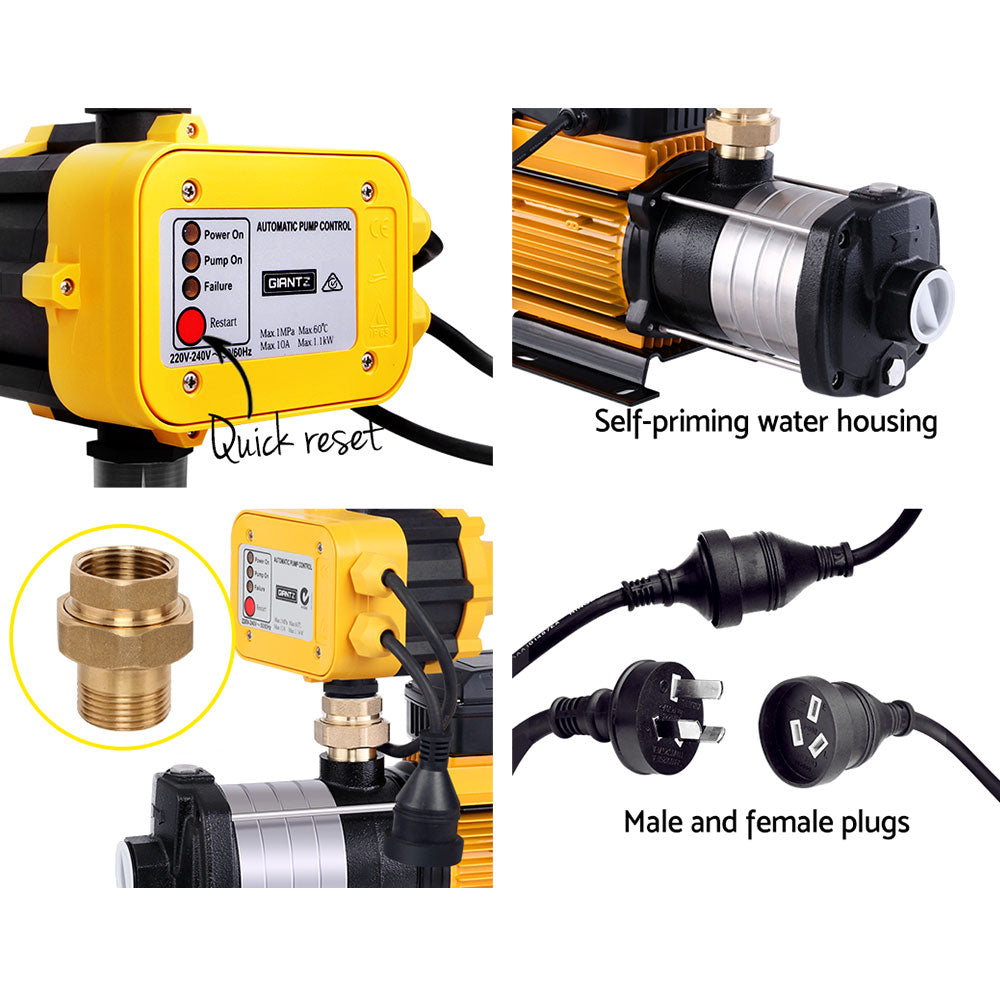

• Fully automatic operation on/off controller

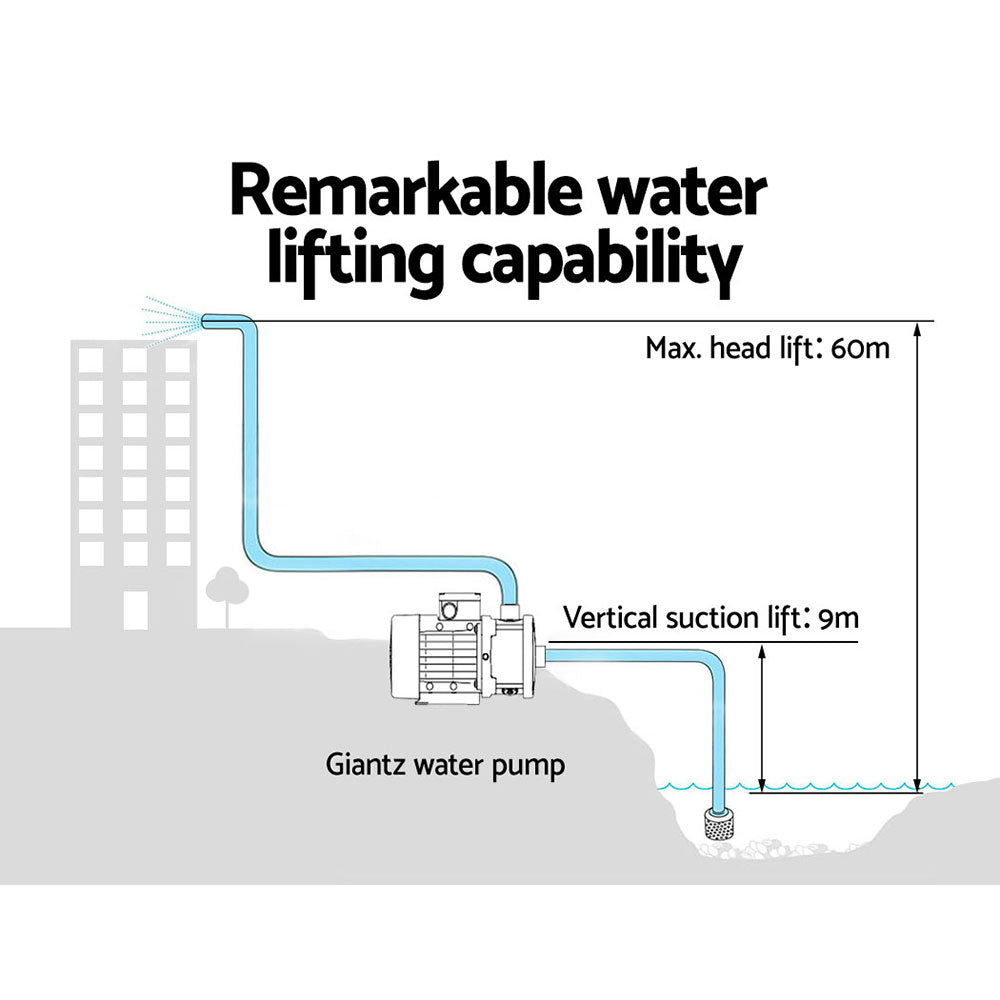

• Huge 50m head
• Anti-corrosive alloy motor housing, ceramic and carbon seals
• Built-in thermal protection
• Efficient cooling system

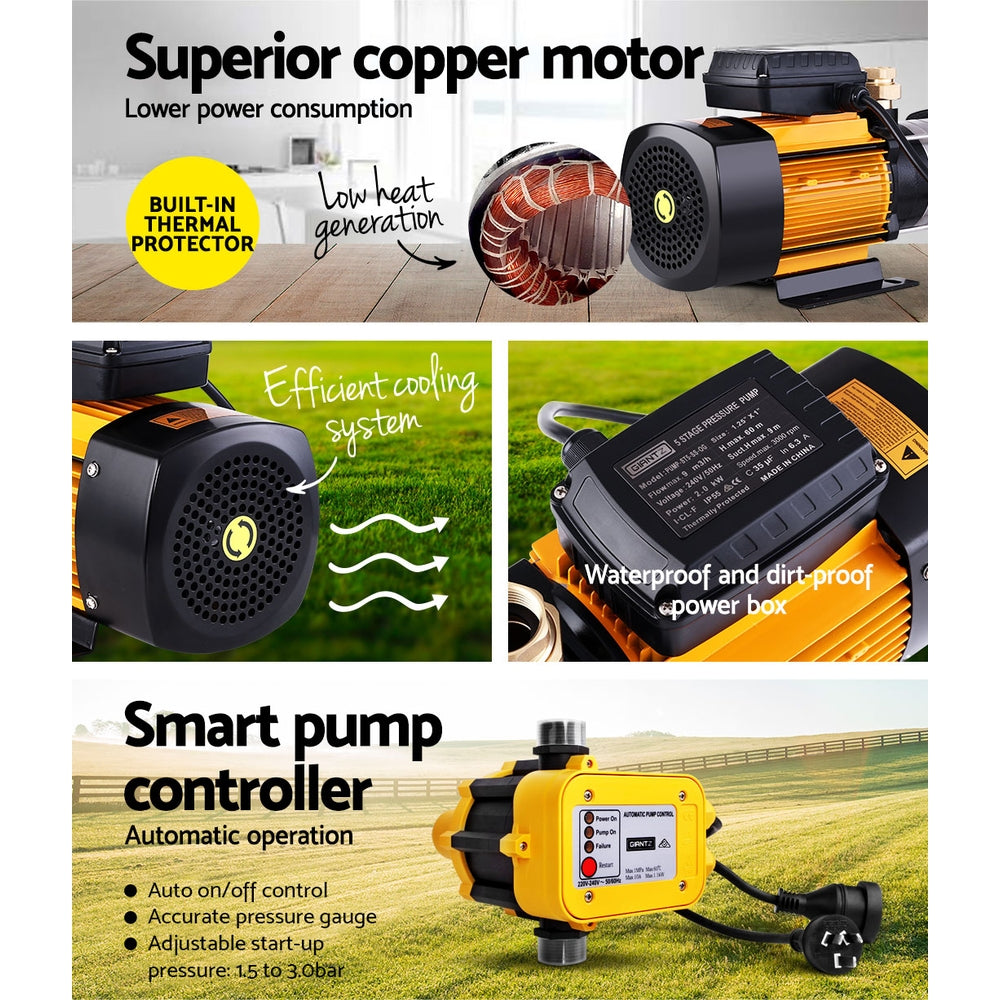

• Highly conductive copper motor

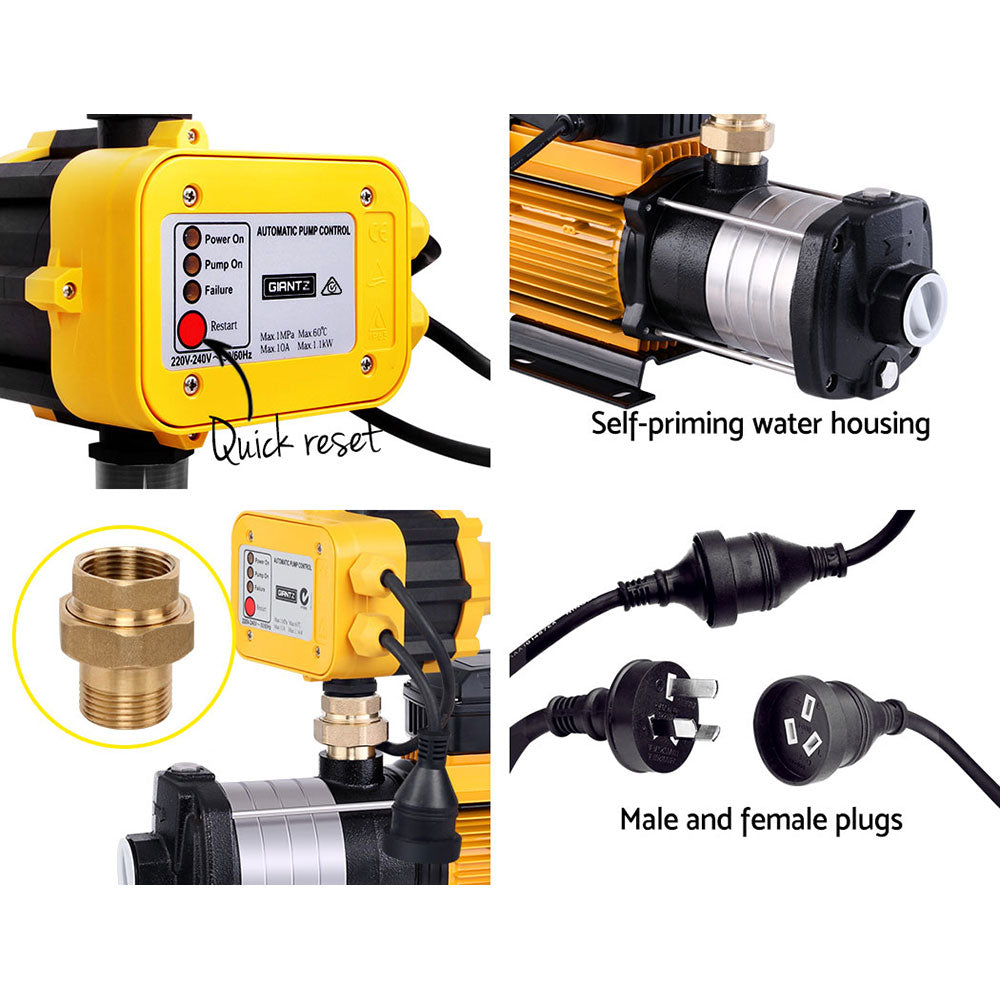

• Corrosion-resistant brass connector
• Leak proof rubber ring
• Easy connecting plug and cable
• Fully automatic pressure controller
• Adjustable start-up pressure
• Australian standard cable and plug

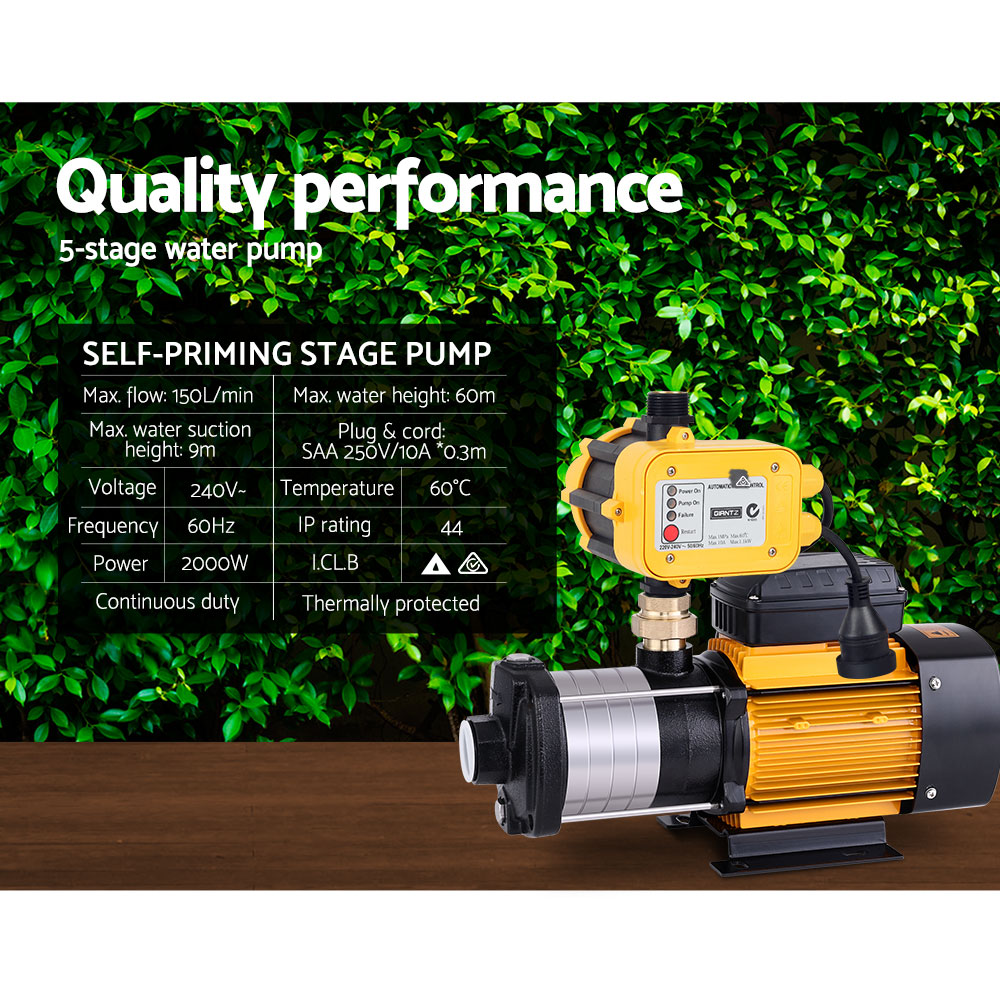

Specifications

• Pump:
• Max Input Power 2000W
• Rated Input Power 1000W
• Plug and cord: SAA 250V/10A *0.3m
• Max pump flow: 6,000L/h (100L/min)

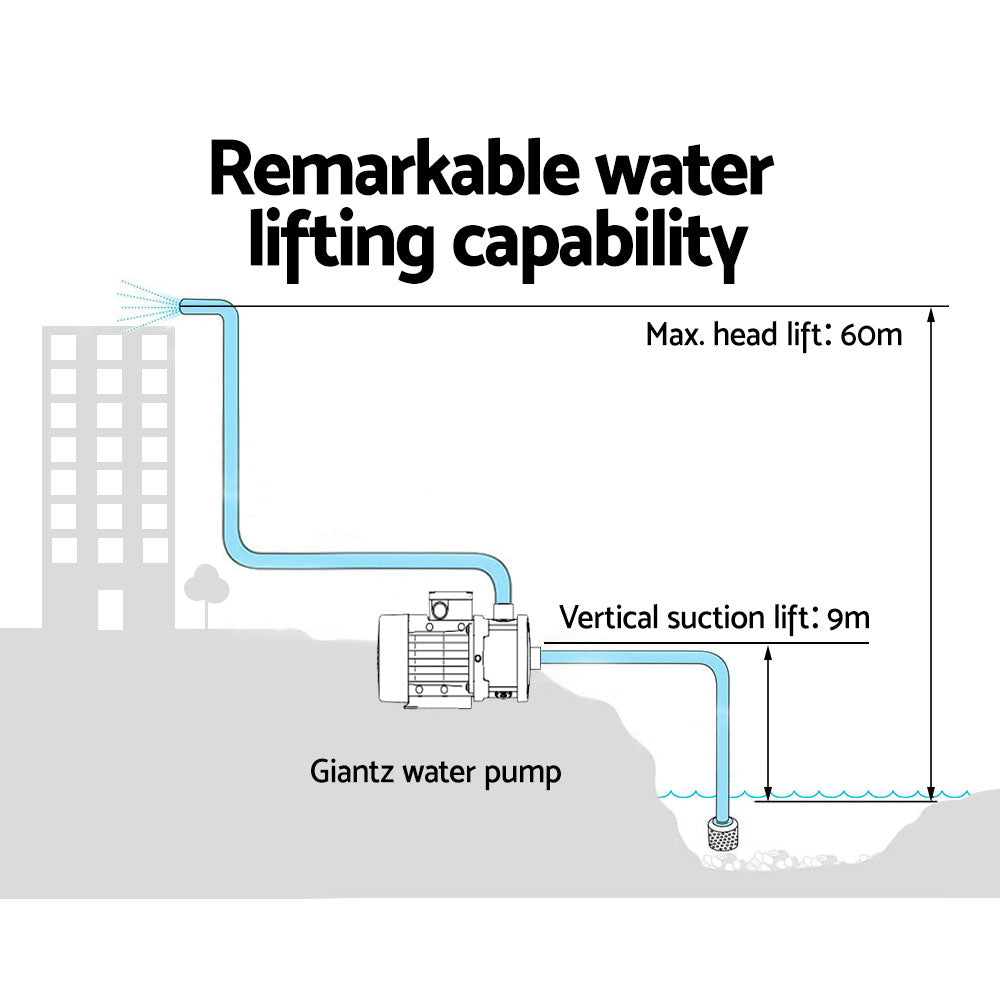

• Max head: 50m
• Duty cycle: Continuous

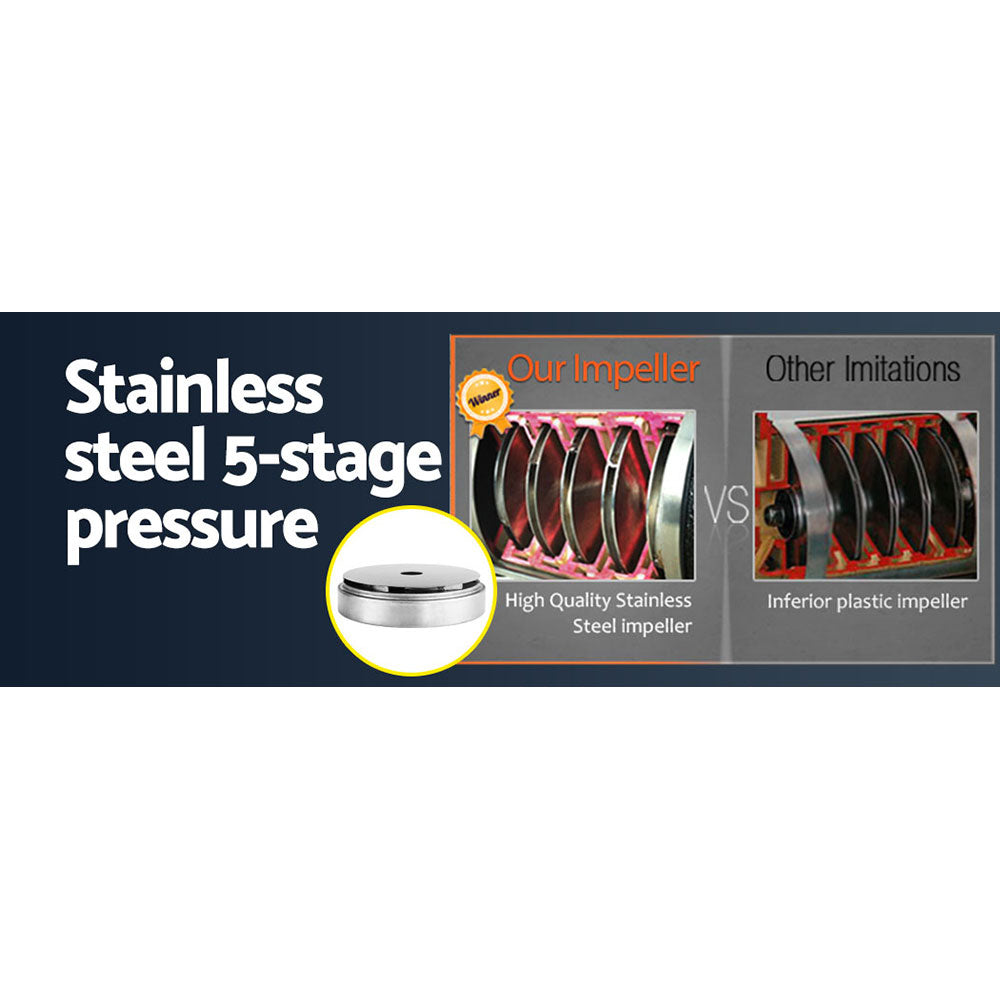

• Impeller: Stainless steel
• Pump body: Stainless steel
• Motor shaft: Stainless steel

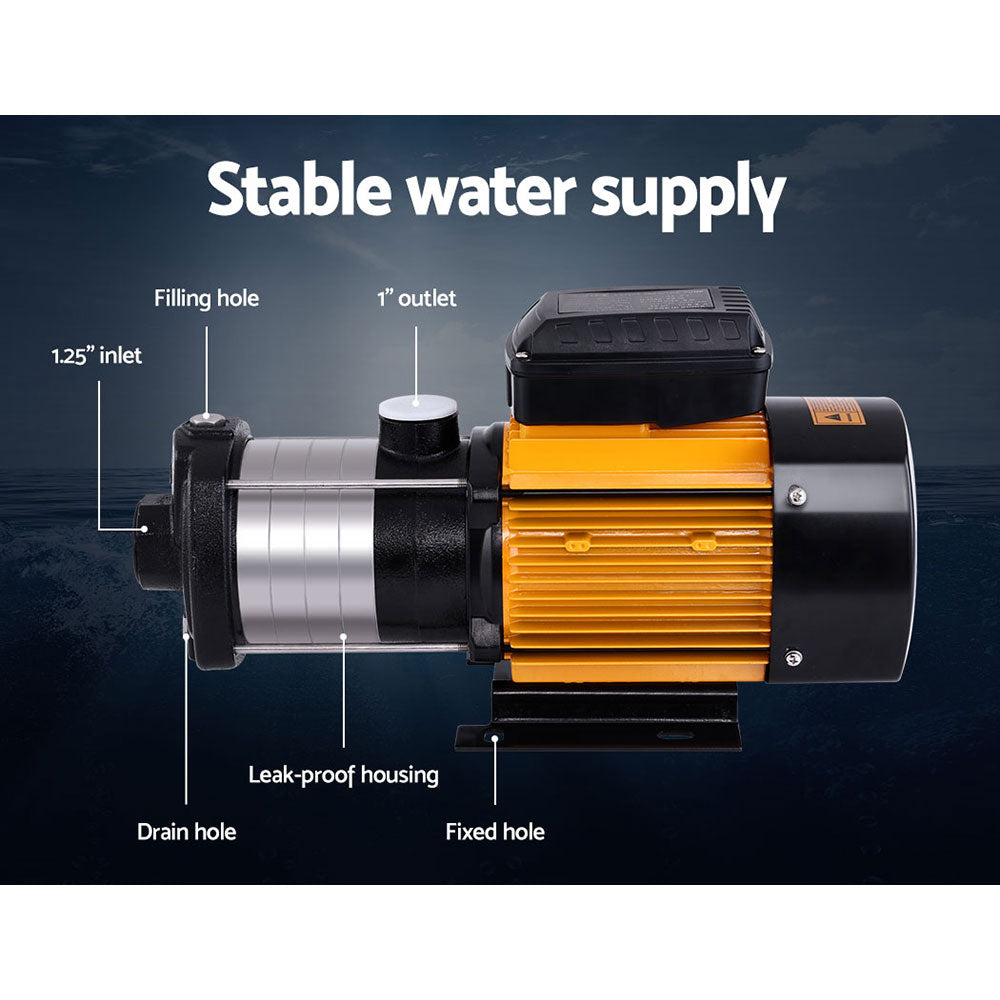

• Inlet diameter: 1.25'' (30mm)
• Outlet diameter: 1'' (25mm)
• Brass connector: 1''
• Protection class: IP54
• Insulation class: B (130℃)
• Max ambient temperature: 40℃
• Max liquid temperature: 60℃
• Controller:
• Voltage: 220/240V
• Frequency: 50/60Hz
• Maximum current: 10A
• Maximum water temperature: 60℃
• Maximum pressure for use: 10bar
• Protection grade: IP65
• Inlet and outlet size: 1'' (25mm)

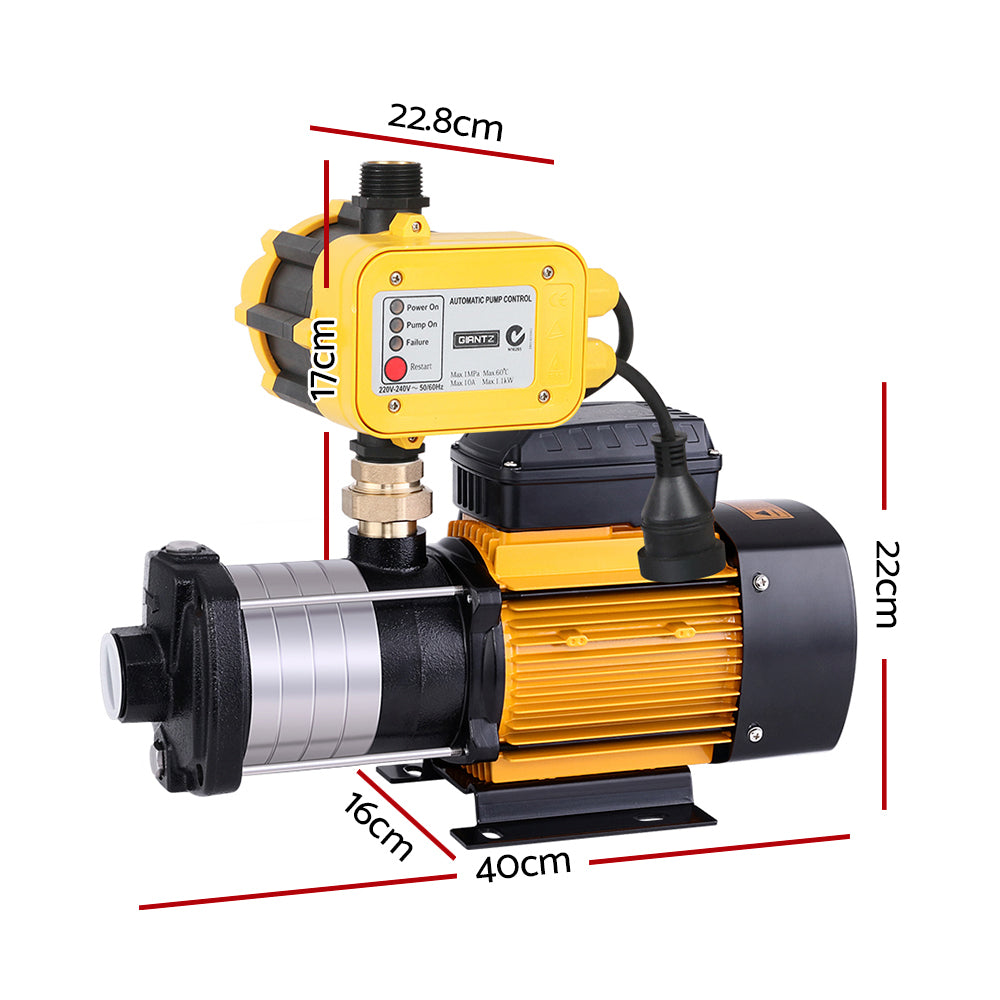

• Dimensions: 22cm x 12.4cm x 17cm
• Colour: Yellow

Package Contents

• Giantz 5-stage Water Pump x 1
• Pump Controller x 1
• User manual x1

Warranty: 1 year
