Giantz 140Amp Inverter Welder Plasma Cutter Gas Free Delivery

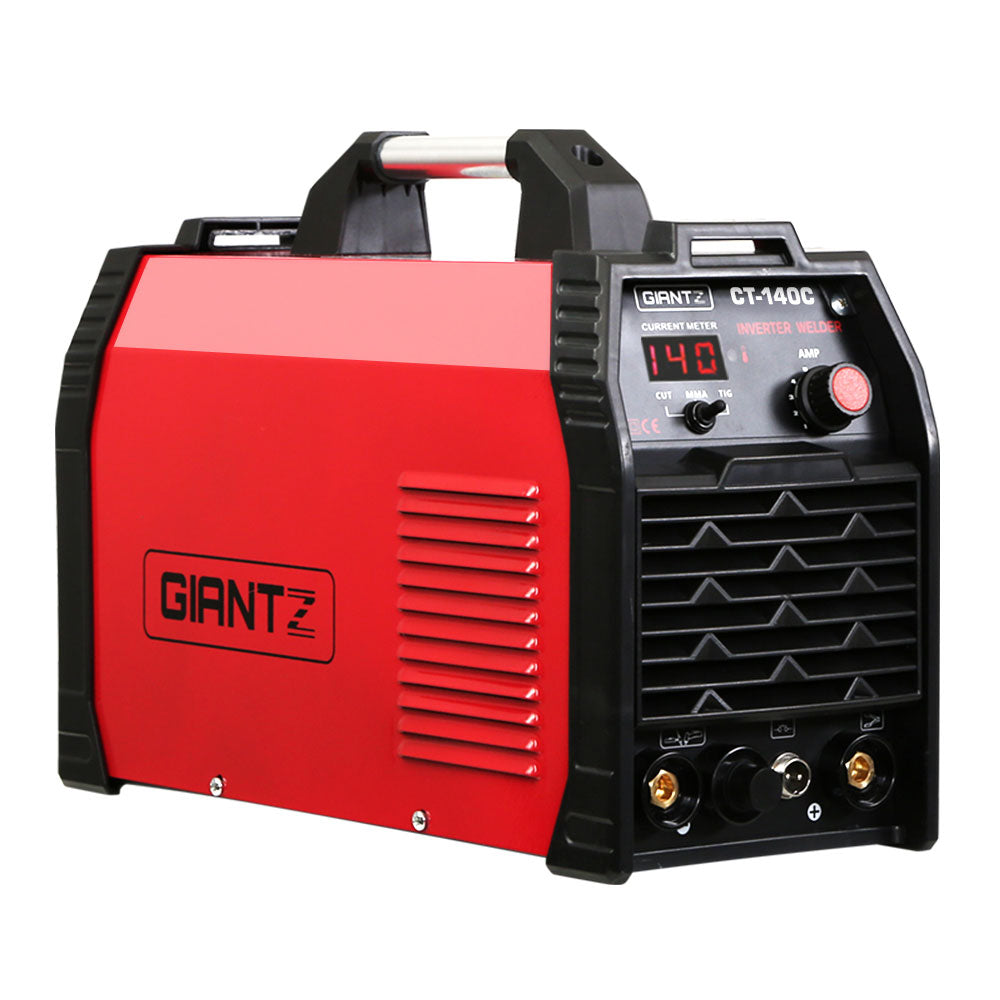

Giantz 140Amp Inverter Welder Plasma Cutter Gas DC iGBT Portable Welding Machine

FREE DELIVERY AUSTRALIA-WIDE

The Giantz 3-in-1 Pro-series Welder offers professional quality TIG/MMA/CUT welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish.

The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 30A and 140A to produce flawless results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The plasma cutting feature also allows for cuts of up to 12mm plate and employs HF start that allows the torch tip to be placed directly onto the work piece for a cleaner starting cut as well as more accurate cutting. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding. NOTE: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets.

Features

• Multifunction CUT/TIG/MMA Welder
• HF contact start technology
• 7kg weight
• Outstanding duty cycle
• Super stable arc force
• IGBT inverter technology
• Super stable DC inverter technology
• Current stablisation and auto increase
• Industry-standard DIN sockets
• Adjustable output current range 30A to 140A
• Outstanding 30,000 MTPF hours cooling
• Overheating, over current, and over/under voltage protection
• Works with a range of rod sizes
• SAA, EMC, CE and C-Tick certified

Specifications

• Power Voltage: Single Phase 220-240V ±15%, 50Hz
• Power Plug: 15A AU Standard
• TIG (Amps/Duty Cycle): 123A @ 100%, 140A @ 60%
• MMA (Amps/Duty Cycle): 123A @ 100%, 140A @60%
• CUT: 20-40 Amps @ 60% Duty Cycle
• Input Air Pressure: 0.4Mpa
• No load power: 40W
• Efficiency: 85%
• Insulation Class: F
• Cut Thickness: 1-6mm
• Shell Protection Grade: IP21
• Pilot Arc Mode: HF
• Welding Electrodes: Up to 4.0mm
• Plasma Torch Length: 4m
• MMA Electrode Cable Length: 1.8m
• Earth Clamp Cable Length: 1.2m
• TIG torch Cable Length: 4m
• Power Cord Length: 1.8m
• Generator Recommended: 8kVA
• Dimensions: 42cm x 16.5cm x 27cm
• Product Weight: 7kg

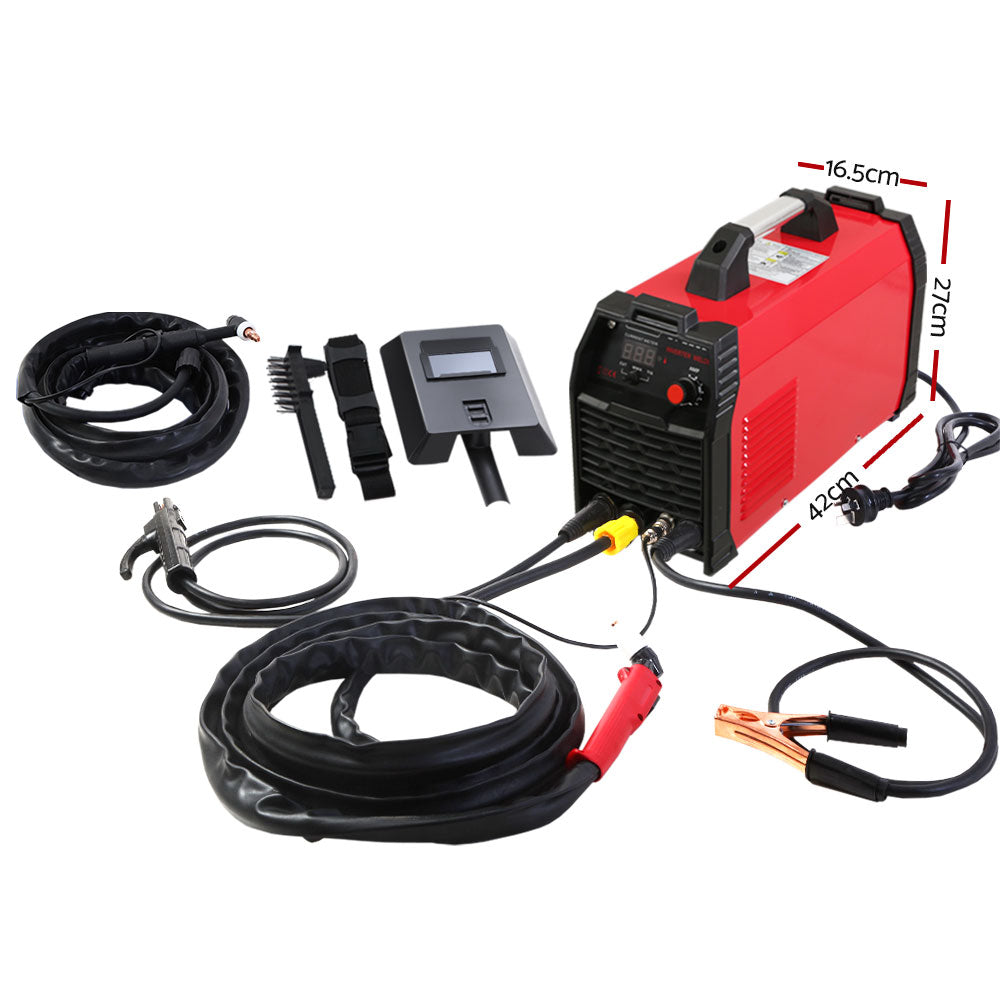

• Product Contents:
• 1 x GIANTZ Inverter Welder
• 1 x Plasma torch with accessories
• 1 x TIG torch Lead
• 1 x Electrode Holder Lead
• 1 x Earth Clamp Lead
• 1 x Welding Mask
• 1 x Packing Bag for Touch Lead
• 1 x Regulator
• 1 x Wire Brush
• 1 x User Manual

Warranty: This product comes with 1 year warranty.

Please note: Shipping may not be possible to some remote or regional regions. We will advise you if there are any problems.
